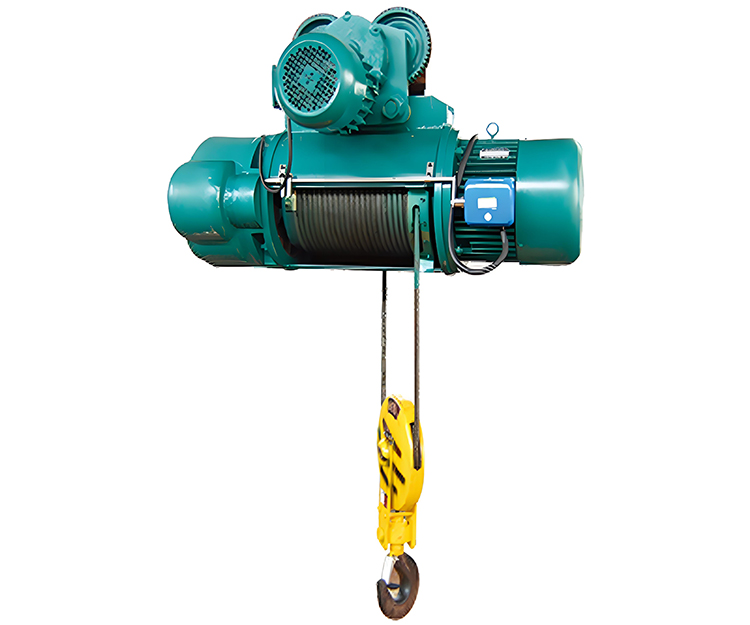

CD1 MD1 Electric Wire Rope Hoist
|
|
|
|
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Introduction
Specifications

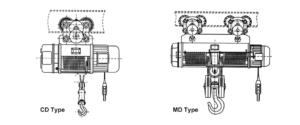

The main difference between the CD1 type and MD1 type electric hoist is the hoisting motor and control electrics; the rest of the accessories and components are common. CD1 type electric hoist is single-speed lifting and lowering, which is suitable for general lifting operations; MD1 type electric hoist is double-speed lifting and lowering (normal speed and low speed), which is suitable for precision operations, such as precision loading and unloading, sand box stacking and machine tool maintenance, etc, and the precise operation is realized through low-speed control. The following provides users with product pictures, external dimensions, and detailed parameter tables of the two types of electric hoists.
CD1 Type Electric Hoist Specifications
| Model | Lifting Weight | Lifting Speed | Running Speed | Hoisting Motor | Running Motor | Weight | ||
| t | m/min | m/min | Model | Power kW | Model | Power kW | kg | |
| CD 1T-12M | 1 | 8 | 20 | ZD22-4 | 1.5 | ZDY11-4 | 0.2 | 172 |
| CD 3T-12M | 3 | 8 | 20 | ZD41-4 | 7.5 | ZDY12-4 | 0.8 | 597 |
| CD 5T-12M | 5 | 8 | 20 | ZD41-4 | 7.5 | ZDY21-4 | 0.8 | 597 |
| CD 10T-12M | 10 | 7 | 20 | ZD51-4 | 13 | ZDY21-4 | 0.8 | 1100 |
| CD12T-12M | 12 | 3.5 | 18 | ZD51-4 | 13 | ZDY21-4 | 0.8 | 1200 |
| CD 16T-12M | 16 | 3.5 | 18 | ZD51-4 | 13 | ZDY21-4 | 0.8 | 1200 |
| CD 20T-12M | 20 | 4.2 | 14 | ZD52-4 | 18.5 | ZDY21-4 | 0.8 | 1930 |
| CD 32T-12M | 32 | 3 | 16 | ZDx62-6 | 18.5 | ZDY22-4 | 1.5 | 2950 |
Note: Lifting height can be customized.
MD1 Type Electric Hoist Specifications
| Model | Lifting Height | Lifting Speed | Running Speed | Hoisting Motor | Running Motor | Weight | ||
| t | m/min | m/min | Model | Power kW | Model | Power kW | kg | |
| MD 1T-12M | 1 | 8/0.8 | 20 | ZDS22-4 | 1.5/0.2 | ZDY11-4 | 0.2 | 199 |
| MD 3T-12M | 3 | 8/0.8 | 20 | ZDS41-4 | 7.5/0.8 | ZDY12-4 | 0.8 | 654 |
| MD 5T-12M | 5 | 8/0.8 | 20 | ZDS41-4 | 7.5/0.8 | ZDY21-4 | 0.8 | 654 |
| MD 10T-12M | 10 | 7/0.7 | 20 | ZDS51-4 | 13/1.5 | ZDY21-4 | 0.8 | 1150 |
| MD 12T-12M | 12 | 3.5/0.35 | 18 | ZDS51-4 | 13/1.5 | ZDY21-4 | 0.8 | 1280 |
| MD 16T-12M | 16 | 3.5/0.35 | 18 | ZDS51-4 | 13/1.5 | ZDY21-4 | 0.8 | 1280 |
| MD 20T-12M | 20 | 4.2/0.42 | 14 | ZDS52-4 | 18.5/2.2 | ZDY21-4 | 0.8 | 1450 |
| MD 32T-12M | 32 | 3/0.3 | 16 | ZDx62-6 | 18.5/2.2 | ZDY22-4 | 1.5 | 2950 |
Note: Lifting height can be customized.
FAQ
| Span(rail to rail center) | 6m~20 or customize | ||||
| Cantilevers | According to your demand, but not more than 1/3 of span | ||||
| Lifting height | 6m~30m | ||||
| Capacity | 3t, 5t | 10t | 15t, 16t | 20t, 25t | 30t, 32t |
| Lifting speed(m/min) | 8, 8/0.8 | 7/0.7 | 3.5 | 4, 4/0.4 | 3, 3/0.3 |
| 3.5/0.35 | |||||
| Cross travelling speed(m/min) | 10 or 20 | ||||
| Long travelling speed(m/min) | 20, 30 | ||||
| Duty Class | A3/A5 | ||||
| Power source | Pendant pushbutton control, cabin control, or remote control | ||||
| Power supply mode | Cable reel / Bus bar | ||||
| Control model | Pendant pushbutton control, cabin control or remote control | ||||
Details Show
Application
Electric European hoist is a kind of high-efficiency, lightweight, modular lifting equipment with compact structure, smooth operation, energy saving and environmental protection, safety, and reliability etc. It is widely used in industries with high requirements for space utilization, precise control, and safety. Its design is in line with European industrial standards (FEM/ISO), and it is suitable for modernized intelligent workshops, precision manufacturing and high-frequency handling scenarios. The following are the main application industries and scenarios
- Automobile manufacturing: for body welding, parts assembly, engine lifting, etc.
- Warehousing and logistics: suitable for high shelf handling, an automated three-dimensional warehouse, low headroom design maximizes the use of space and improves storage efficiency.
- Food & Pharmaceuticals: Stainless steel and food-grade lubrication are used to meet the requirements of clean workshops, such as filling lines and packaging equipment lifting.
- Electronics and Precision Manufacturing: for semiconductor equipment, LCD panel handling, equipped with an anti-sway function.
-
Difference with Ordinary Electric Hoist
Comparison items European Electric Hoist Ordinary Wire Rope Electric Hoist Self weight Higher variable frequency option Heavier, traditional wire rope construction Control accuracy Higher, variable frequency option General, conventional speed regulation (single and double speed optional) Space occupation Compact size, suitable for low spaces Slightly higher relative mounting height Price $2,750-4,450 $350-1200 European hoist manufacturers
As one of the leading European hoist manufacturers in China, Juren Group is dedicated to delivering lightweight, intelligent, and high-performance lifting solutions for a wide range of industrial applications. With decades of engineering expertise and a strong focus on innovation, we specialize in the design and production of customized European hoists and common electric wire rope hoists that meet the latest global standards in safety, efficiency, and reliability. We hold multiple international certifications, including ISO, CE, and have exported lifting equipment to over 30 countries worldwide. Feel free to contact us for customized solutions.Our services include:Pre-sale engineering consultation and customized solution design.On-site installation and commissioning.Global after-sales support, including spare parts supply, maintenance training, and remote technical guidance.
